BFG24 - Belimo

Belimo 24V Spring Return Actuator 180 Degree Rotation

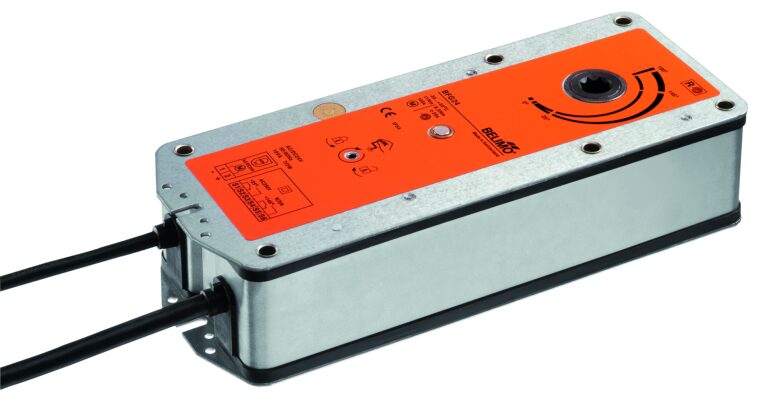

Belimo BFG24

Product Information

Spring-return actuator for fire and smoke dampers 180˚ in ventilation and air-conditioning systems

Technical specifications

  • Spring-return actuator
  • 11 Nm, 120 s, 180˚ rotation
  • AC 24 V, Open/Close, 2 x SPDT, IP 54
  • Manual override with integrated position stop
  • Torque spring 8.5 Nm, Running time spring approx. 20 s
  • Connection halogen-free cable, Auxiliary switch 2 integral, potential-free, 25˚, 145˚
  • Spindle driver form-fit 10 x 10 mm
  • Direction of rotation reversible by mounting right/left

Useful downloads

BFG24 PRODUCT DATASHEET

BFG24 Technical Data Sheet

Download (PDF 264.2 KB)

Fire damper actuators

Download (PDF 796.33 KB)

Speak to a specialist in Belimo retrofit Fire & Smoke products today

As the UK's only partner for Belimo retrofit Fire & Smoke actuators, MHS is the place to order your replacement Fire & Smoke actuators today. Deal direct with MHS, and benefit from the added expert technical support we give all our customers when buying these life safety products.
