BF24 - Belimo

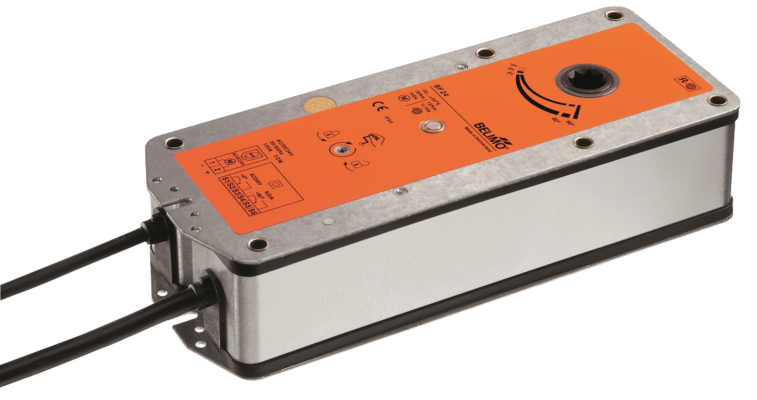

Belimo 24V Spring Return Actuator for Fire Applications 18Nm

Belimo BF24

Ready to order?

Click here to order this product

Order now

MHS are Belimo's only UK partner for retrofit Fire & Smoke actuators Find out more here →

Product Information

Spring-return actuator for fire and smoke dampers 90˚ in ventilation and air-conditioning systems

Technical specifications

  • Spring-return actuator, 18 Nm, < 120 s, 95˚(incl. 5˚ spring-return),
  • AC/DC 24 V Open/Close 2 x SPDT
  • IP 54, Manual override with integrated position stop
  • Torque spring 12 Nm, Running time spring approx. 16s
  • Connection halogen-free cable
  • Auxiliary switch - 2 integral
  • Spindle driver form-fit 12 x 12mm shaft (10 x 10 mm with adapter)
  • Direction of rotation reversible (right/left)

Useful downloads

BF24 PRODUCT DATASHEETS

BF24 Technical Data Sheet

Download (PDF 253.413 KB) ↓

Fire damper actuators

Download (PDF 815.442 KB) ↓
