BF230 - Belimo

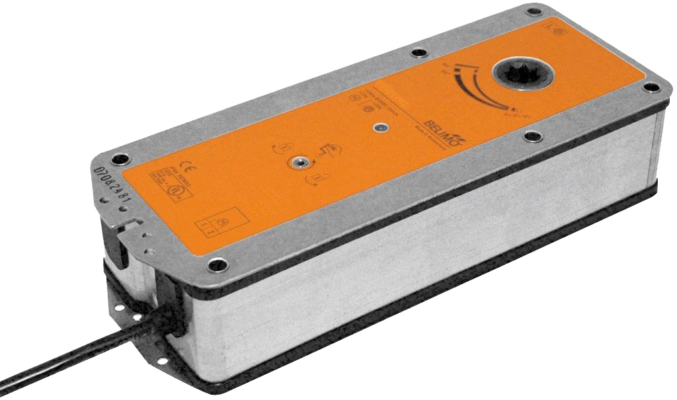

Belimo 230V Spring Return Actuator for Fire Applications 18Nm

Belimo BF230

Ready to order?

Click here to order this product

Order now

MHS are Belimo's only UK partner for retrofit Fire & Smoke actuators Find out more here →

Product Information

Spring-return actuator for fire and smoke dampers 90˚ in ventilation and air-conditioning systems.

Technical specifications

  • Spring-return actuator, 18 Nm, < 120 s, 95˚, AC 230 V
  • Open/Close, 2 x SPDT, IP 54
  • Manual override with integrated position stop
  • Torque spring 12 Nm, Running time spring approx. 16s
  • Connection halogen-free cable
  • Auxiliary switch 2 integral, potential-free, 5˚, 80˚
  • Spindle driver form-fit 12 x 12 mm (10 x 10 mm with adapter)
  • Direction of rotation reversible by mounting right/left

Useful downloads

BF230 PRODUCT DATASHEETS

BF230 Technical Datasheet

Download (PDF 265.213 KB) ↓

Fire damper actuators

Download (PDF 815.442 KB) ↓
