BFN24 - Belimo

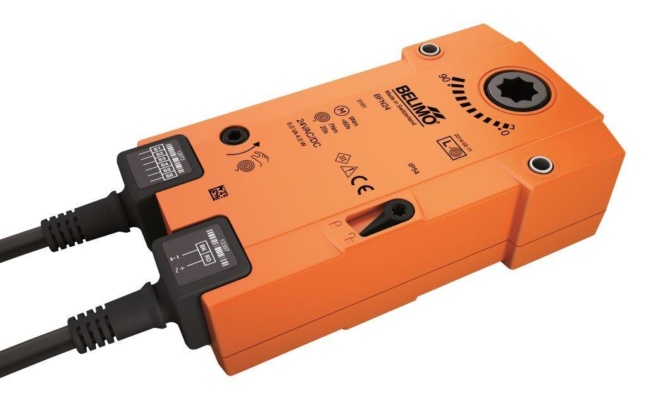

Belimo 24V Spring Return Actuator for Fire Applications 9Nm

Belimo_BFN24

Ready to order?

Click here to order this product

Order now

MHS are Belimo's only UK partner for retrofit Fire & Smoke actuators Find out more here →

Product Information

Spring-return actuator for fire and smoke dampers 90° in ventilation and air-conditioning systems.

Technical specifications

  • Spring-return actuator 90˚, 9 Nm/7 Nm, <60 s/20 s (motor/spring)
  • AC/DC 24 V, open-close
  • cable 1 m
  • Form fit 12x12 mm, continuous hollow shaft
  • Auxiliary switch 2 x SPDT (5˚ / 80˚)
  • Manual override with position stop
  • IP54 in all mounting positions, direction of rotation can be selected by mounting L/R
  • Incl. hand crank pointer & protective bag

Useful downloads

BFN24 PRODUCT DATASHEETS

BFN24 Datasheet

Download (PDF 321.25 KB) ↓
