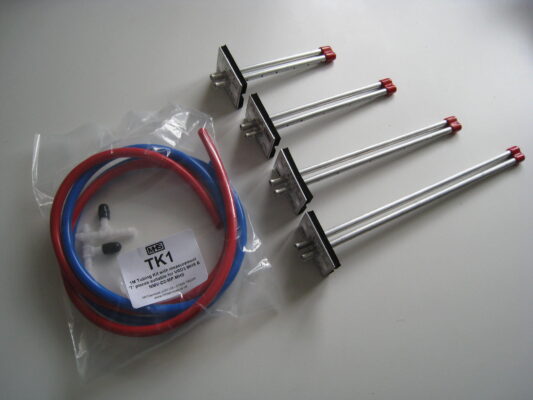

The AFP range of duct mounted multi-point airflow probes has been specifically designed to provide low cost velocity/pressure sensors for use with the Belimo range of service/retrofit VAV controllers and actuators.
The AFP's dimensions and fixings have been customised to allow for quick and easy replacement of the Belimo VR1 or VR2 single single point sensors. The AFP will fit straight into the VR1/VR2 20mm insertion hole and uses the fixing holes left when the original single point sensors is removed. The new sensors have the added advantage of providing multi-point sensing across the total diameter of the inlet duct.
Technical specifications
- The AFP's dimensions and fixings have been customised to allow for quick and easy replacement of the Belimo VR1 or VR2 single single point sensors.
- The AFP will fit straight into the VR1/VR2 20mm insertion hole and uses the fixing holes left when the original single point sensors is removed.
- The new sensors have the added advantage of providing multi-point sensing across the total diameter of the inlet duct, The AFP is available from stock in five standard lengths:, 100mm, 125mm, 160mm, 200mm, 250mm
- The AFP is inserted into the ductwork through a single 20mm hole and fixed with two No. 8 self tapping screws
- The AFP is fitted with a foam gasket to ensure an air tight seal is achieved between the sensor and ductwork
- The AFP is connected to the Belimo unit with the use of a TK1 tubing kit
